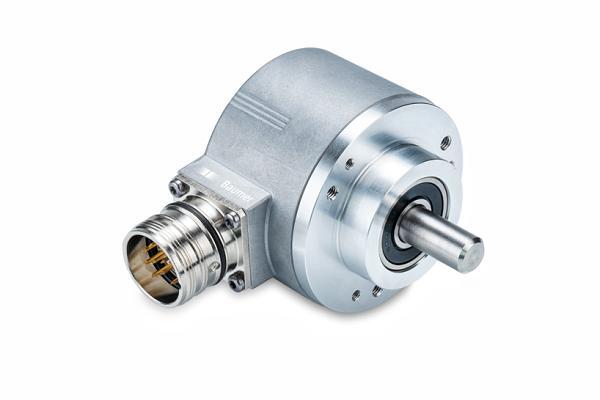

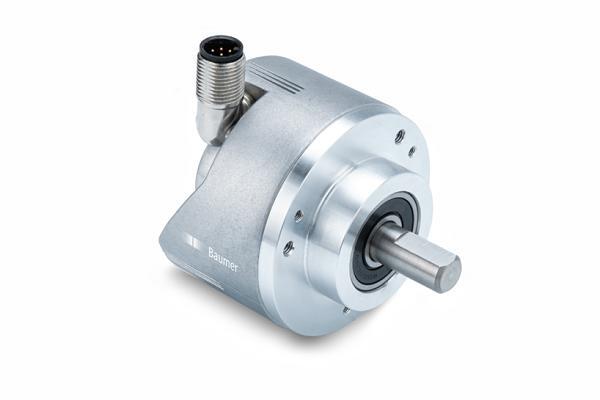

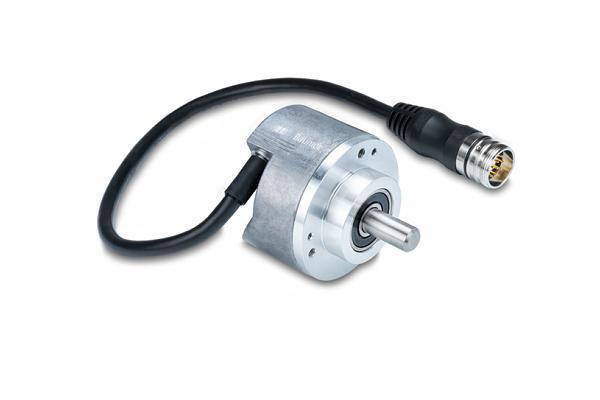

• EN580E.ML绝对式编码器采用实心轴或通孔空心轴
• SSI,BiSS C 认证
• 连接灵活性高。
产品名称 | 法兰 | 轴类型 | 连接 | 接口 | 每圈步数 | 圈数 | 工作温度 |
optoTurn EN580E.ML-SC10.G$$1B.13120.H/11249978 货号: 11249978 |
夹紧法兰 | ø10 x 20 mm,实心轴带紧固面 | Flange connector M23, 12-pin, CW (option 3252) | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-SC10.G$$1G.13120.H/11250117 货号: 11250117 |
夹紧法兰 | ø10 x 20 mm,实心轴带紧固面 | Flange connector M23, 12-pin, CW (option 3252) | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-SC10.GA11B.13120.H 货号: 11246025 |
夹紧法兰 | ø10 x 20 mm,实心轴带紧固面 | Connector M12, 8-pin, flexible | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-SC10.GA11G.13120.H 货号: 11246024 |
夹紧法兰 | ø10 x 20 mm,实心轴带紧固面 | Connector M12, 8-pin, flexible | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-SC10.GA1B1.13120.H 货号: 11245798 |
夹紧法兰 | ø10 x 20 mm,实心轴带紧固面 | Connector M12, 8-pin, flexible | BiSS C Certified | 8192 / 13位 | 4096 / 12位 | 25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-SC10.GB11B.13120.H 货号: 11246027 |
夹紧法兰 | ø10 x 20 mm,实心轴带紧固面 | Flange connector M23, 12-pin, CCW | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-SC10.GB11G.13120.H 货号: 11246026 |
夹紧法兰 | ø10 x 20 mm,实心轴带紧固面 | Flange connector M23, 12-pin, CCW | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-SC10.GB1B1.13120.H 货号: 11246028 |
夹紧法兰 | ø10 x 20 mm,实心轴带紧固面 | Flange connector M23, 12-pin, CCW | BiSS C Certified | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-SC10.GE11B.13120.H 货号: 11246050 |
夹紧法兰 | ø10 x 20 mm,实心轴带紧固面 | Flylead connector M23, 12-pin, tangential, length 300 mm | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-SC10.GE11G.13120.H 货号: 11246029 |
夹紧法兰 | ø10 x 20 mm,实心轴带紧固面 | Flylead connector M23, 12-pin, tangential, length 300 mm | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-SC10.GE1B1.13120.H 货号: 11246051 |
夹紧法兰 | ø10 x 20 mm,实心轴带紧固面 | Flylead connector M23, 12-pin, tangential, length 300 mm | BiSS C Certified | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-SU06.G$$1B.13120.H/11250118 货号: 11250118 |
同步法兰 | ø6 x 10 mm,实心轴带紧固面 | Flange connector M23, 12-pin, CW (option 3252) | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-SU06.G$$1G.13120.H/11250119 货号: 11250119 |
同步法兰 | ø6 x 10 mm,实心轴带紧固面 | Flange connector M23, 12-pin, CW (option 3252) | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-SU06.GA11B.13120.H 货号: 11245975 |
同步法兰 | ø6 x 10 mm,实心轴带紧固面 | Connector M12, 8-pin, flexible | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-SU06.GA11G.13120.H 货号: 11245977 |
同步法兰 | ø6 x 10 mm,实心轴带紧固面 | Connector M12, 8-pin, flexible | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-SU06.GA1B1.13120.H 货号: 11245974 |
同步法兰 | ø6 x 10 mm,实心轴带紧固面 | Connector M12, 8-pin, flexible | BiSS C Certified | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-SU06.GB11B.13120.H 货号: 11246022 |
同步法兰 | ø6 x 10 mm,实心轴带紧固面 | Flange connector M23, 12-pin, CCW | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-SU06.GB11G.13120.H 货号: 11246023 |
同步法兰 | ø6 x 10 mm,实心轴带紧固面 | Flange connector M23, 12-pin, CCW | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-SU06.GB1B1.13120.H 货号: 11246021 |
同步法兰 | ø6 x 10 mm,实心轴带紧固面 | Flange connector M23, 12-pin, CCW | BiSS C Certified | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-SU06.GE11B.13120.H 货号: 11245979 |
同步法兰 | ø6 x 10 mm,实心轴带紧固面 | Flylead connector M23, 12-pin, tangential, length 300 mm | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-SU06.GE11G.13120.H 货号: 11246020 |
同步法兰 | ø6 x 10 mm,实心轴带紧固面 | Flylead connector M23, 12-pin, tangential, length 300 mm | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-SU06.GE1B1.13120.H 货号: 11245978 |
同步法兰 | ø6 x 10 mm,实心轴带紧固面 | Flylead connector M23, 12-pin, tangential, length 300 mm | BiSS C Certified | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-TT12.G$$1B.13120.H/11250130 货号: 11250130 |
- | ø12 mm (通孔型) | Flange connector M23, 12-pin, CW (option 3252) | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-TT12.G$$1G.13120.H/11250131 货号: 11250131 |
- | ø12 mm (通孔型) | Flange connector M23, 12-pin, CW (option 3252) | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-TT12.GA11B.13120.H 货号: 11246044 |
- | ø12 mm (通孔型) | Connector M12, 8-pin, flexible | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-TT12.GA11G.13120.H 货号: 11246043 |
- | ø12 mm (通孔型) | Connector M12, 8-pin, flexible | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-TT12.GA1B1.13120.H 货号: 11246045 |
- | ø12 mm (通孔型) | Connector M12, 8-pin, flexible | BiSS C Certified | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-TT12.GB11B.13120.H 货号: 11246047 |
- | ø12 mm (通孔型) | Flange connector M23, 12-pin, CCW | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-TT12.GB11G.13120.H 货号: 11246046 |
ø12 mm (通孔型) | Flange connector M23, 12-pin, CCW | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) | |
optoTurn EN580E.ML-TT12.GB1B1.13120.H 货号: 11246048 |
- | ø12 mm (通孔型) | Flange connector M23, 12-pin, CCW | BiSS C Certified | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-TT12.GE11B.13120.H 货号: 11246060 |
- | ø12 mm (通孔型) | Flylead connector M23, 12-pin, tangential, length 300 mm | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-TT12.GE11G.13120.H 货号: 11246049 |
- | ø12 mm (通孔型) | Flylead connector M23, 12-pin, tangential, length 300 mm | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-TT12.GE1B1.13120.H 货号: 11246061 |
- | ø12 mm (通孔型) | Flylead connector M23, 12-pin, tangential, length 300 mm | BiSS C Certified | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-TT14.G$$1B.13120.H/11250132 货号: 11250132 |
- | ø14 mm (通孔型) | Flange connector M23, 12-pin, CW (option 3252) | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-TT14.G$$1G.13120.H/11250133 货号: 11250133 |
- | ø14 mm (通孔型) | Flange connector M23, 12-pin, CW (option 3252) | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-TT14.GA11B.13120.H 货号: 11246063 |
- | ø14 mm (通孔型) | Connector M12, 8-pin, flexible | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-TT14.GA11G.13120.H 货号: 11246062 |
- | ø14 mm (通孔型) | Connector M12, 8-pin, flexible | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-TT14.GA1B1.13120.H 货号: 11246064 |
- | ø14 mm (通孔型) | Connector M12, 8-pin, flexible | BiSS C Certified | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-TT14.GB11B.13120.H 货号: 11246066 |
- | ø14 mm (通孔型) | Flange connector M23, 12-pin, CCW | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-TT14.GB11G.13120.H 货号: 11246065 |
- | ø14 mm (通孔型) | Flange connector M23, 12-pin, CCW | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-TT14.GB1B1.13120.H 货号: 11246067 |
- | ø14 mm (通孔型) | Flange connector M23, 12-pin, CCW | BiSS C Certified | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-TT14.GE11B.13120.H 货号: 11246069 |
- | ø14 mm (通孔型) | Flylead connector M23, 12-pin, tangential, length 300 mm | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
optoTurn EN580E.ML-TT14.GE11G.13120.H 货号: 11246068 |
- | ø14 mm (通孔型) | Flylead connector M23, 12-pin, tangential, length 300 mm | SSI | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明)编码器 |
optoTurn EN580E.ML-TT14.GE1B1.13120.H 货号: 11246070 |
- | ø14 mm (通孔型) | Flylead connector M23, 12-pin, tangential, length 300 mm | BiSS C Certified | 8192 / 13位 | 4096 / 12位 | -25...+85 °C (参见通用说明) |
